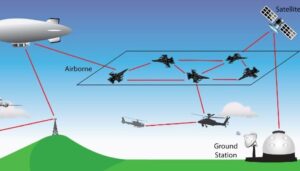

If you are a researcher and doing research on Free Space Optical Network, and trying to do it using an ns2 simulator, you may see an FSO extension available for ns-2. But, if you try to do your research seriously using that extension, then I think, probably you will be having trouble in patching ns2 with this FSO extension and making it work.
As a net result, you may not able to make it run on any ns2 version.
After a little bit of effort, I managed to patch ns2.34 with the FSO extension. But facing some problems while running the example scripts.
Experiment 1:
While testing the installation with the given example single.tcl, there was an error.
The function get-power-for-xmit-range is not at all declared anywhere.
So, I used the function get-power-for-rf-xmit-range
If I simulate for 500 seconds, as follows :
$ns single.tcl 500
num_nodes is set 2
INITIALIZE THE LIST xListHead
Starting Simulation…
channel.cc:sendUp – Calc highestAntennaZ_ and distCST_
highestAntennaZ_ = 0.0, distCST_ = 0.0
SORTING LISTS …DONE!
60
120
180
240
300
360
420
480
NS EXITING…
