Installing and Using Cryptography under Linux using Crypto++

Crypto++ Cryptography Library

Crypto++[1] is a free, open-source C++ library for cryptographic schemes originally written by Wei Dai and includes ciphers, message authentication codes, one-way hash functions, public-key cryptosystems, key agreement schemes, and deflate compression[2]. The library is now maintained by several team members and the community. This library offers implementations for well-known and lesser-known schemes and algorithms.

Below is a small list of well-known systems[2].

Diffie-Hellman Key Agreement
Advanced Encryption Standard
RSA Cryptography
Elliptic Curve Cryptography
Digital Signature Algorithm
ElGamal Cryptosystem
x25519 Key Agreement
ed25519 Signature Scheme
ChaCha20 Stream Cipher

List of supported algorithms of Crypto++ version 8.8 as per[1] :

Authenticated encryption schemes: GCM, CCM, EAX, ChaCha20Poly1305 and XChaCha20Poly1305
High speed stream ciphers : ChaCha (8/12/20), ChaCha (IETF), Panama, Salsa20, Sosemanuk, XSalsa20, XChaCha20
AES and AES candidates: AES (Rijndael), RC6, MARS, Twofish, Serpent,CAST-256ARIA
Other block ciphers: Blowfish, Camellia, CHAM, HIGHT, IDEA, Kalyna (128/256/512), LEA, SEED, RC5, SHACAL-2, SIMON (64/128), Skipjack, SPECK (64/128), Simeck, SM4, Threefish (256/512/1024), Triple-DES (DES-EDE2 and DES-EDE3), TEA, XTEA
block cipher modes of operation: ECB, CBC, CBC ciphertext stealing (CTS), CFB, OFB, counter mode (CTR), XTS
Message authentication codes: BLAKE2s, BLAKE2b, CMAC, CBC-MAC, DMAC, GMAC, HMAC, Poly1305, Poly1305 (IETF), SipHash, Two-Track-MAC, VMAC
Hash functions: BLAKE2s, BLAKE2b, Keccack (F1600), LSH (256/512), SHA-1, SHA-2 (224/256/384/512), SHA-3 (224/256), SHA-3 (384/512), SHAKE (128/256), SipHash, SM3, Tiger, RIPEMD (128/160/256/320), WHIRLPOOL
Public-key cryptography: RSA, DSA, Deterministic DSA, ElGamal, Nyberg-Rueppel (NR), Rabin-Williams (RW), LUC, LUCELG, EC-based German Digital Signature (ECGDSA),DLIES (variants of DHAES), ESIGN
Padding schemes for public-key: PKCS#1 v2.0, OAEP, PSS, PSSR, IEEE P1363 systems EMSA2 and EMSA5
Key agreement schemes: Diffie-Hellman (DH), Unified Diffie-Hellman (DH2), Menezes-Qu-Vanstone (MQV), Hashed MQV (HMQV), Fully Hashed MQV (FHMQV), LUCDIF, XTR-DH
Elliptic curve cryptography: ECDSA, Deterministic ECDSA, ed25519, ECNR, ECIES, ECDH, ECMQV, x25519
Insecure or obsolescent algorithms retained for backwards compatibility and historical value: MD2, MD4, MD5, Panama Hash, DES, ARC4, SEAL 3.0, WAKE-OFB, DESX (DES-XEX3), RC2, SAFER, 3-WAY, GOST, SHARK, CAST-128, Square

The list of other features of Crypto++ as presented in [1]:

Pseudo random number generators (PRNG): ANSI X9.17 appendix C, RandomPool, DARN, VIA Padlock, RDRAND, RDSEED, NIST Hash and HMAC DRBGs
Password based key derivation functions: PBKDF1 and PBKDF2 from PKCS #5,PBKDF from PKCS #12 appendix B, HKDF from RFC 5869, Scrypt from RFC 7914
Shamir’s secret sharing scheme and Rabin’s information dispersal algorithm
(IDA)
Fast multi-precision integer (bignum) and polynomial operations
Finite field arithmetics, including GF(p) and GF(2^n)
Prime number generation and verification
Useful non-cryptographic algorithms+ DEFLATE (RFC 1951) compression/decompression with gzip (RFC 1952) and
zlib (RFC 1950) format support
+ Hex, base-32, base-64, URL safe base-64 encoding and decoding
+ 32-bit CRC, CRC-C and Adler32 checksum
class wrappers for these platform and operating system features (optional):
+ high resolution timers on Windows, Unix, and Mac OS
+ /dev/random, /dev/urandom, /dev/srandom
+ Microsoft’s CryptGenRandom or BCryptGenRandom on Windows
A high level interface for most of the above, using a filter/pipeline
metaphor
Benchmarks and validation testing
x86, x64 (x86-64), x32 (ILP32), ARM-32, Aarch32, Aarch64 and Power8 in-core code for the commonly used algorithms
+ run-time CPU feature detection and code selection
+ supports GCC-style and MSVC-style inline assembly, and MASM for x64
+ x86, x64 (x86-64), x32 provides MMX, SSE2, and SSE4 implementations
+ ARM-32, Aarch32 and Aarch64 provides NEON, ASIMD and ARMv8 implementations
+ Power8 provides in-core AES using NX Crypto Acceleration

One may try this procedure on any Linux system. But, here we use chrooted Debin 10 Buster System which was virtually installed on a Debian 11 Bullseye host (yes Debian 10 on Debian 11 for safety reasons). Those who do not know what is chroot based virtualization then may read the following article[6]:

Installing ns3.35 in Debian 10 chroot Jail Under Debian 11 Host OS or any Version of Linux Host

Note: In fact, the ns-3 installation part of that article is not necessary for proceeding with this tutorial. So, to follow this tutorial, just installing a Linux system is sufficient or you may use one if you are already having it.

A. Installing Crypto++ from Binary version

Install the binary version of crypto++ (libcryptopp) on Ubuntu

$sudo apt-get install libcrypto++-dev libcrypto++-doc libcrypto++-utils

This will install crypto++ library and its development supports under Linux file system.

Instead of using the binary version, you can download and compile crypto++ from source version. The next section explains this.

B. Installing Crypto++ from the Source version

Step 1: Downloading Crypto++

One may download source and binary versions of Crypto++ from [6] or download the source version from [1].

In this procedure, I used the source version of Crypto++ version from [1].

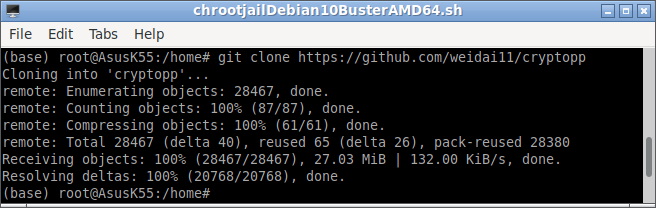

$ cd /home/your_home
$ git clone https://github.com/weidai11/cryptopp

Step 2: Compiling Crypto++

After downloading the latest version of Crypto++ from [1], we may compile it as follows:

$ cd /home/your_home/cryptopp
$ make

The above command will compile Crypto++ library.

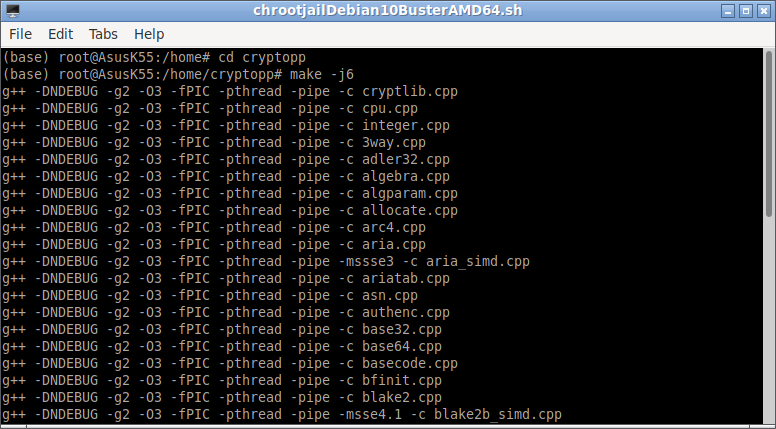

The following screenshot shows the start of the build process :

At the end of the successful compilation, you will see the following :

You may test the compiled library as follows:

$ make test

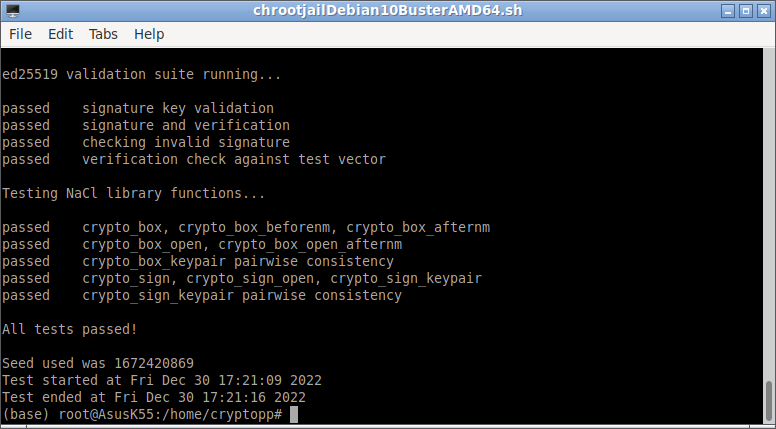

You will see the following screen at the successful end of the test process.

The next step shows the simplest way of accessing this library.

For that you have to do the following:

Now we are ready to use the Crypto++ library.

Step 4: Testing the good working of Crypto++

After installing Crypto++, before trying to use it with ns-3, we have to test the good working status of the library installation by using it in a simple CPP program.

The following “ecctest.cpp” is one such sample program provided at [7]. It will perform curve operations directly. The j following code from[7] shows you how to exponentiate, multiply and add using the lower-level primitives over secp256r1.

#include "integer.h"
#include "eccrypto.h"
#include "osrng.h"
#include "oids.h"

#include
#include

int main(int argc, char* argv[])
{
    using namespace CryptoPP;
    typedef DL_GroupParameters_EC GroupParameters;
    typedef DL_GroupParameters_EC::Element Element;

    AutoSeededRandomPool prng;
    GroupParameters group;
    group.Initialize(ASN1::secp256r1());

    // private key
    Integer x(prng, Integer::One(), group.GetMaxExponent());

    std::cout << "Private exponent:" << std::endl;
    std::cout << "  " << std::hex << x << std::endl;

    // public key
    Element y = group.ExponentiateBase(x);

    std::cout << "Public element:" << std::endl;
    std::cout << "  " << std::hex << y.x << std::endl;
    std::cout << "  " << std::hex << y.y << std::endl;

    // element addition
    Element u = group.GetCurve().Add(y, ECP::Point(2,3));

    std::cout << "Add:" << std::endl;
    std::cout << "  " << std::hex << u.x << std::endl;
    std::cout << "  " << std::hex << u.y << std::endl;

    // scalar multiplication
    Element v = group.GetCurve().ScalarMultiply(u, Integer::Two());

    std::cout << "Mult:" << std::endl;
    std::cout << "  " << std::hex << v.x << std::endl;
    std::cout << "  " << std::hex << v.y << std::endl;

    return 0;
}

If you compile the code using gcc or g++, then probably you may end up with an error like the following one:

To successfully run the code, you have to do the following :

Now we can run the compiled ecc test program.

It will produce an output like this:

The above output shows the successful run of the ecc example program.

Conclusion

This article explains the way of installing the Crypto++ library under Linux using the source version as well as the binary version of that library. After installing this library we can use it in our programs to do cryptography-related operations. Even it is possible to do the modification in the source version of the library for doing new research work related to cryptography.

The following article[7] explains the way of compiling ns-3 along with Crypto++ library and using cryptographic function of this library with ns-3 simulations.
