Secrets of Using Fuzzy Logic in ns-3 using Fyzzylite Library

In fact, using ‘waf’ based ns-3 compile, we can easily add an external library and use it in our ns-3 simulations. Doing the same under CMake is a little bit different thing. This article shows a simple ‘waf ‘based compile and an easy unique way of doing that in CMake based ns-3 compile process that uses an external fuzzy logic library along with ns-3-dev.

Fuzzylite

Fuzzylite[1] is an excellent, rich library that contains almost all the concepts of fuzzy logic that you may see in a text book.

As presented in [1], the FuzzyLite library have the following features:

Controllers: Mamdani, Takagi-Sugeno, Larsen, Tsukamoto, Inverse Tsukamoto, Hybrids

Linguistic terms:

Basic: triangle, trapezoid, rectangle, discrete.
Extended:  bell, cosine, gaussian, gaussian product, pi-shape, sigmoid difference, sigmoid product, spike.
Edges:  binary, concave, ramp, sigmoid, s-shape, z-shape.
Functions: constant, linear, function.

Activation methods: general, proportional, threshold, first, last, lowest, highest.

Conjunction and Implication (T-Norms): minimum, algebraic product, bounded difference, drastic product, einstein product, hamacher product, nilpotent minimum, function.

Disjunction and Aggregation (S-Norms): maximum, algebraic sum, bounded sum, drastic sum, einstein sum, hamacher sum, nilpotent maximum, normalized sum, unbounded sum, function.

Defuzzifiers:

Integral: centroid, bisector, smallest of maximum, largest of maximum, mean of maximum.
Weighted: weighted average, weighted sum.

Hedges: any, not, extremely, seldom, somewhat, very, function.

Importers: FuzzyLite Language fll, Fuzzy Inference System fis, Fuzzy Control Language fcl.

Exporters: C++, Java, FuzzyLite Language fll, FuzzyLite Dataset fld, R script, Fuzzy Inference System fis, Fuzzy Control Language fcl.

Examples:  for Mamdani, Takagi-Sugeno, Tsukamoto, and Hybrid controllers from fuzzylite, Octave, and Matlab, each included in the following formats: C++, Java, fll, fld, R, fis, and fcl.

In addition, we can easily:

  • Create your own classes inheriting from fuzzylite, register them in the factories, and incorporate them to operate in fuzzylite.
  • Utilize multiple rule blocks within a single engine, each containing any number of (possibly weighted) rule, and different conjunction, disjunction and activation operators.
  • Write inference rules just naturally, e.g., “if obstacle is left then steer is right”.
  • Return a default output value, lock the output values to be within specific ranges, lock the previous valid output value when no rules are activated.
  • Explore the function space of your controller.
  • Utilize the entire library across multiple threads as it is thread-safe.
  • Download the sources, documentation, and binaries for the major platforms in the Downloads tab.

Using an External Library under the earlier ‘waf’ based ns-3 systems

If you search the internet, then you may find different ways of compiling ns-3 with an external library.

Hidden Section! Contact Charles

The key/passphrase will be given once you have been approved for getting paid research support/assistance from Charles. To get paid support, you may start a 'free' research discussion.

WhatsApp chatDiscuss Through WhatsApp


So, the above additions to a typical “wscript” of a particular module or an ns-3 simulation will add fuzzylite functionality in that module or simulation. We are ignoring that procedure here because we are going to use only cmake based compile process of ns-3.

Using an External Library under the old and new ‘CMake’ based ns-3 systems

As far as search the internet, there is no such simple way to do the same under the latest CMake based ns-3 or ns-3-dev versions which will not contain ‘waf’ script.

The author and maintainer of ns-3 CMake system have explained the way of using an external library under CMake at the ns-3 user group[3]. But I could not understand that. So I tried to do the same in another easy way.



Installing Fuzzylite



Step 1:  Downloading Fuzzylite

One may download source and binary versions of Fuzzylite from [4] or download the source version from [5].

In this procedure, I used the Fuzzylite version from [5].

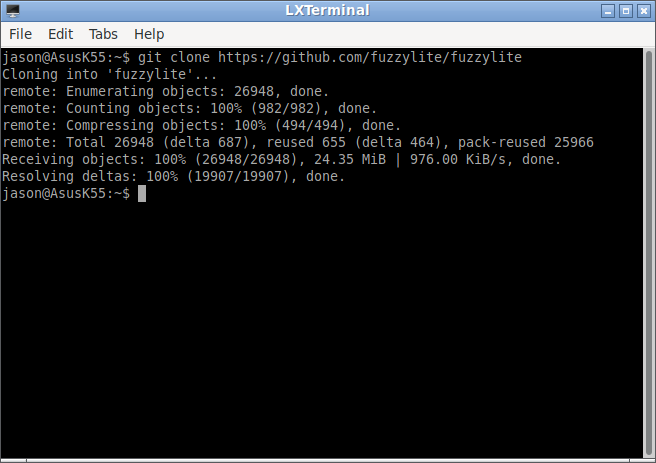

$ cd /home/your_home
$ git clone https://github.com/fuzzylite/fuzzylite

Step 2:  Compiling Fuzzylite

After downloading the latest version of Fuzzylite  from [5], we may compile it as follows:

Hidden Section! Contact Charles

The key/passphrase will be given once you have been approved for getting paid research support/assistance from Charles. To get paid support, you may start a 'free' research discussion.

WhatsApp chatDiscuss Through WhatsApp

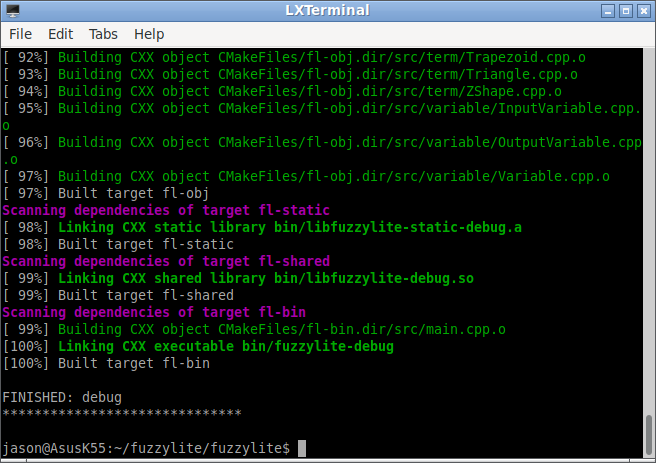

You will see the following screen at the successful end of the compile process.



The next step shows the simplest way of accessing this library

Hidden Section! Contact Charles

The key/passphrase will be given once you have been approved for getting paid research support/assistance from Charles. To get paid support, you may start a 'free' research discussion.

WhatsApp chatDiscuss Through WhatsApp




Step 4:  Testing the good working of Fuzzylite

After installing Fuzzylite, before trying to use it with ns-3, we have to test the good working status of the library installation by using it in a simple CPP program.

The following “ObstacleAvoidance.cpp” is one such sample program provided at [1]. If we run this program, the for loop will generate 50 locations and will make fuzzy decisions using fuzzy logic.

//File: ObstacleAvoidance.cpp
#include “fl/Headers.h”

int main(int argc, char* argv[]){

using namespace fl;

Engine* engine = new Engine;
engine->setName(“ObstacleAvoidance”);
engine->setDescription(“”);

InputVariable* obstacle = new InputVariable;
obstacle->setName(“obstacle”);
obstacle->setDescription(“”);
obstacle->setEnabled(true);
obstacle->setRange(0.000, 1.000);
obstacle->setLockValueInRange(false);
obstacle->addTerm(new Ramp(“left”, 1.000, 0.000));
obstacle->addTerm(new Ramp(“right”, 0.000, 1.000));
engine->addInputVariable(obstacle);

OutputVariable* mSteer = new OutputVariable;
mSteer->setName(“mSteer”);
mSteer->setDescription(“”);
mSteer->setEnabled(true);
mSteer->setRange(0.000, 1.000);
mSteer->setLockValueInRange(false);
mSteer->setAggregation(new Maximum);
mSteer->setDefuzzifier(new Centroid(100));
mSteer->setDefaultValue(fl::nan);
mSteer->setLockPreviousValue(false);
mSteer->addTerm(new Ramp(“left”, 1.000, 0.000));
mSteer->addTerm(new Ramp(“right”, 0.000, 1.000));
engine->addOutputVariable(mSteer);

RuleBlock* mamdani = new RuleBlock;
mamdani->setName(“mamdani”);
mamdani->setDescription(“”);
mamdani->setEnabled(true);
mamdani->setConjunction(fl::null);
mamdani->setDisjunction(fl::null);
mamdani->setImplication(new AlgebraicProduct);
mamdani->setActivation(new General);
mamdani->addRule(Rule::parse(“if obstacle is left then mSteer is right”, engine));
mamdani->addRule(Rule::parse(“if obstacle is right then mSteer is left”, engine));
engine->addRuleBlock(mamdani);

std::string status;

if (not engine->isReady(&status))
throw Exception(“[engine error] engine is not ready:\n” + status, FL_AT);

for (int i = 0; i <= 50; ++i){

scalar location = obstacle->getMinimum() + i * (obstacle->range() / 50);
obstacle->setValue(location);
engine->process();
FL_LOG(“obstacle.input = ” << Op::str(location) <<
” => ” << “steer.output = ” << Op::str(mSteer->getValue()));

}

}

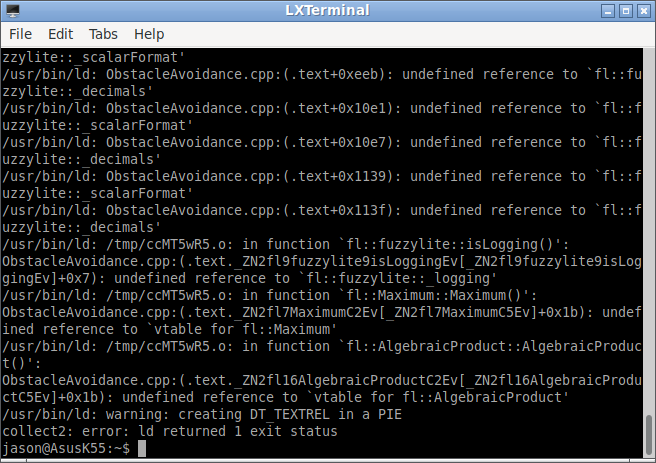

If you compile the code using gcc or g++,  then you may end up with an error like the following one:

To successfully run the code, you have to do the following two things:

Hidden Section! Contact Charles

The key/passphrase will be given once you have been approved for getting paid research support/assistance from Charles. To get paid support, you may start a 'free' research discussion.

WhatsApp chatDiscuss Through WhatsApp


The above command will successfully compile the code, and we will have the binary as “a.out”.

So now we can run this example as follows:



#if needed, change to the folder where the’ a.out’ is stored
$ cd /home/your_home/
$ ./a.out

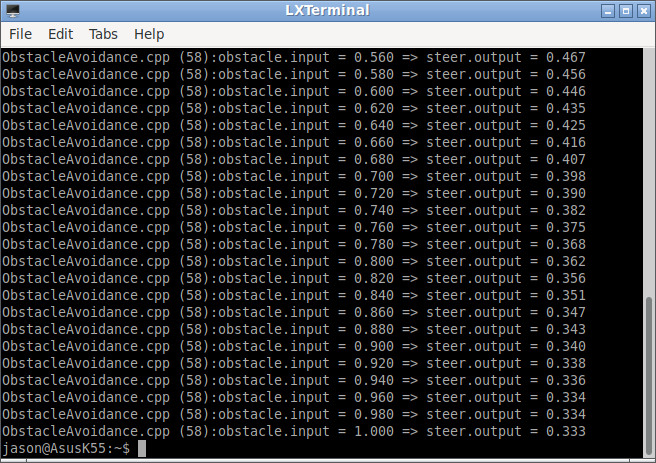

The above command will simply run the demo and will end up with the following outputs:

Installing ns-3-dev version

Now install the dev version of ns-3 (which now only support CMake based compile) using a procedure like[6].

Using Fuzzylite in a ns-3 Project

On internet, we may see some of the complex ways of using a shared library under ns-3,  using procedures like the one explained in [3]. We need not do that many of complex changes in ns-3 files (wscripts and CMake related files) to make it work.
The following section explains a simple and easy way of integrating Fuzzylite with ns-3 and designing any fuzzy logic based network protocol under ns-3.
The secret is …

Hidden Section! Contact Charles

The key/passphrase will be given once you have been approved for getting paid research support/assistance from Charles. To get paid support, you may start a 'free' research discussion.

WhatsApp chatDiscuss Through WhatsApp


Now you can use the functions of Fuzzylite library from  within any ns-3 project just by adding the necessary header files and using the appropriate namespace as follows :

#include “fl/Headers.h”

using namespace fl;

Engine* engine = new Engine;

//Now configure fuzzy sets (inputs and outpus), rules

. . . . .

. . . . .

// check whether the engine is ready after the above settings
std::string status;
if (not engine->isReady(&status))
throw Exception(“[engine error] engine is not ready:\n” + status, FL_AT);

//Give a crisp input andget a crisp output
AAAA->setValue(aaa);
engine->process();

. . . . .

. . . . .

//Make use of the output values

Now we can implement fuzzylogic inside any ns-3 project by following the above steps.

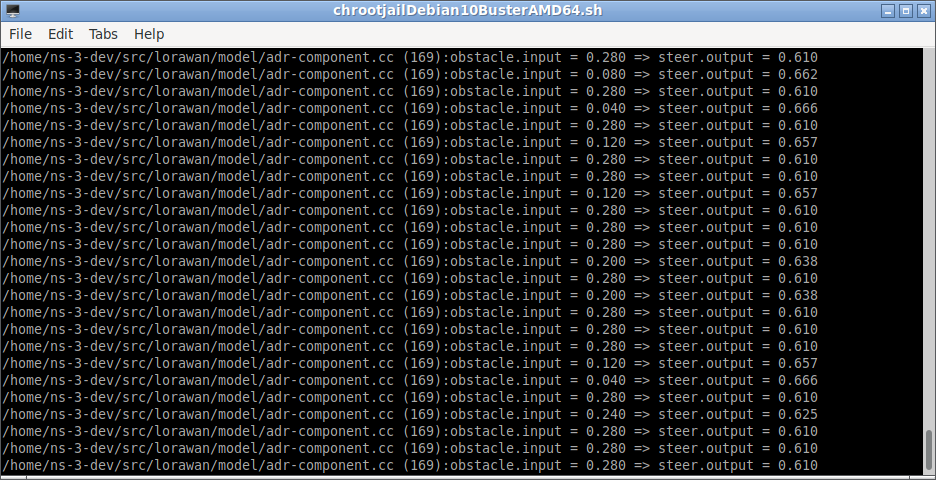

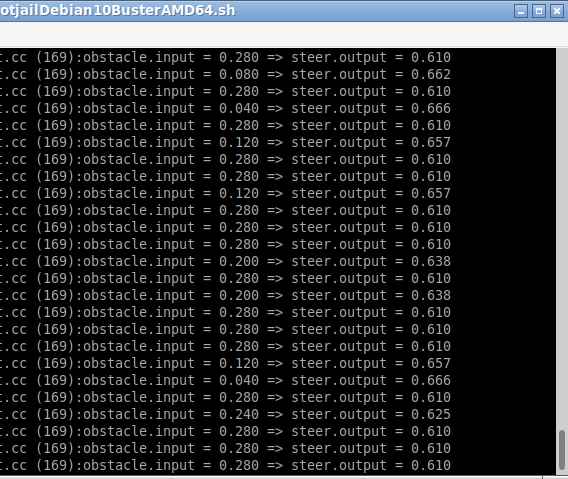

The following is the output of one such example programme based on the inputs and outputs of  “ObstacleAvoidance.cpp” –  but it is implemented inside a network protocol of ns-3.

In the above output, each line is created at a packet receive function of a typical protocol layer and every line corresponds to one received packet.
